仪表电缆
BS EN 50288-7仪表电缆
多芯PE绝缘，LSZH护套 ，总屏蔽&铠装仪表电缆
RE-2Y(St)HSWAH 90°C / 500V
应用及描述
BS EN 50288-7标准仪表电缆用于仪表控制系统中模拟信号和数字信号的传输，根据IEC79-14分类，可用于II组1区和2区环境中，
不能直接连接在低阻抗电源，例如公共电力供应站。
推荐应用在室内和室外安装，支架，托盘，管道，干湿环境中，不推荐直埋使用。
推荐应用在生命和重要财产物资的消防防火措施中。
标准
基本设计遵循BS EN 50288-7标准
防火特性
| 阻燃特性（单根电缆垂直燃烧测试） | EN 60332-1-2; IEC 60332-1-2; BS EN 60332-1-2; VDE 0482-332-1; NBN C 30-004 (cat. F1); NF C32-070-2.1(C2); CEI 20-35/1-2; EN 50265-2-1*; DIN VDE 0482-265-2-1* |
|---|---|
| 降低火蔓延（多根电缆成束垂直火焰燃烧测试）*** | EN 60332-3-24 (cat. C); IEC 60332-3-24; BS EN 60332-3-24; VDE 0482-332-3; NBN C 30-004 (cat. F2); NF C32-070-2.2(C1);CEI 20-22/3-4; EN 50266-2-4*; DIN VDE 0482-266-2-4 |
| 无卤 | IEC 60754-1; EN 50267-2-1; DIN VDE 0482-267-2-1; CEI 20-37/2-1 ; BS 6425-1* |
| 电缆燃烧腐蚀性气体零排放 | IEC 60754-2; EN 50267-2-2; DIN VDE 0482-267-2-2; CEI 20-37/2-2 ; BS 6425-2* |
| 电缆燃烧最小烟密度 | IEC 61034-1&2; EN 61034 -1&2; DIN VDE 0482-1034-1&2; CEI 20-37/3-1&2; EN 50268-1&2*; BS 7622-1&2* |
| 电缆无毒测试 | NES 02-713; NF C 20-454 |
| 抗紫外线 | UL 1581 section 1200 |
| 耐油 | ICEA S-73-532** |
备注：*为已替换的标准，***为可选标准。
额定电压
500V

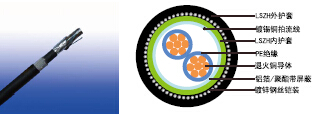

电缆结构
| 导体 | IEC 60228标准2类多股退火铜导体。 |
|---|---|
| 绝缘 | EN 50290-2-23标准挤压式PE复合物绝缘 |
| 屏蔽 | 带有0.5mm²镀锡铜排流线的铝带/聚酯带层屏蔽。 |
| 内护套 | EN 50290-2-27标准LSZH复合物。 |
| 铠装 | SWA镀锌钢丝铠装。 |
| 外护套 | EN 50290-2-27标准LSZH复合物。防紫外线，耐烃，耐油，防啮齿和防白蚁特性都是可选的。 |
颜色
绝缘： 黑/蓝， 成对的电缆在蓝色线芯上以数字（1，2、、、）连续标识。
外护套：黑色或蓝色（本安系统）
物理特性
| 工作温度范围（固定状态下） | -30°C – +90°C |
|---|---|
| 安装温度范围（运动状态） | -5°C ( PVC 护套 ); -20°C ( PE 护套 ) |
| 最小弯曲半径 | 7.5 X 外径 |
| 抗紫外线 | UL 1581 section 1200 |
| 耐油 | |
| ICEA S-73-532(测试温度 +60°C, 持续4小时。4小时过程中，保持拉伸强度和伸长率最小值为60%。) | |
电气性能
| 导体截面积 | mm2 | 0.5 | 0.75 | 1 | 1.3 | 1.5 | 2.5 |
|---|---|---|---|---|---|---|---|
| 标称绝缘厚度 | mm | 0.55 | 0.55 | 0.55 | 0.6 | 0.6 | 0.7 |
| 导体电阻 (20°C) | Ω/km | 36.7 | 25 | 18.5 | 14.2 | 12.3 | 7.4 |
| 绝缘电阻 (20°C) | MΩ.km(Min.) | 5000 | |||||
| 交互电容 (1 kHz) | pF/m(Max.) | 115 | |||||
| 电容不平衡值(1 kHz) | pF/500 m (Max.) | 500 | |||||
|
μH/Ω(Max.) | 25 | 25 | 25 | 40 | 40 | 60 |
| 工作电压 | V | 500 | |||||
| 测试电压 Urms | 线芯之间V | 2000 | |||||
| 线芯与屏蔽之间 V | 2000 | ||||||
电缆结构参数
| 电缆型号 | 芯数×1×截面积 | 标称绝缘厚度 | 标称内护套厚度 | 标称内护套层总外径 | 标称铠装层厚度 | 标称外护套厚度 | 标称总外径 | 标称总重量 |
|---|---|---|---|---|---|---|---|---|
| No.x1xmm2 | mm | mm | mm | mm | mm | mm | kg/km | |
| 0.5mm2，多芯 | ||||||||
| RE-2Y(St)HSWAH 2C0.5 | 2x1x0.5 | 0.55 | 0.9 | 6.2 | 0.9 | 1.3 | 10.6 | 217 |
| RE-2Y(St)HSWAH 3C0.5 | 3x1x0.5 | 0.55 | 0.9 | 6.5 | 0.9 | 1.3 | 10.9 | 230 |
| RE-2Y(St)HSWAH 4C0.5 | 4x1x0.5 | 0.55 | 0.9 | 7 | 0.9 | 1.3 | 11.4 | 253 |
| RE-2Y(St)HSWAH 5C0.5 | 5x1x0.5 | 0.55 | 0.9 | 7.6 | 0.9 | 1.3 | 12 | 283 |
| RE-2Y(St)HSWAH 8C0.5 | 8x1x0.5 | 0.55 | 1 | 9.1 | 0.9 | 1.4 | 13.7 | 337 |
| RE-2Y(St)HSWAH 10C0.5 | 10x1x0.5 | 0.55 | 1 | 10.4 | 0.9 | 1.4 | 15 | 399 |
| RE-2Y(St)HSWAH 12C0.5 | 12x1x0.5 | 0.55 | 1 | 10.7 | 0.9 | 1.4 | 15.3 | 442 |
| RE-2Y(St)HSWAH 14C0.5 | 14x1x0.5 | 0.55 | 1 | 11.3 | 0.9 | 1.4 | 15.9 | 474 |
| RE-2Y(St)HSWAH 16C0.5 | 16x1x0.5 | 0.55 | 1.1 | 11.8 | 0.9 | 1.4 | 16.4 | 505 |
| RE-2Y(St)HSWAH 20C0.5 | 20x1x0.5 | 0.55 | 1.1 | 13.3 | 0.9 | 1.5 | 18.1 | 569 |
| RE-2Y(St)HSWAH 24C0.5 | 24x1x0.5 | 0.55 | 1.1 | 14.7 | 0.9 | 1.5 | 19.5 | 659 |
| RE-2Y(St)HSWAH 27C0.5 | 27x1x0.5 | 0.55 | 1.2 | 15 | 0.9 | 1.5 | 19.8 | 808 |
| RE-2Y(St)HSWAH 30C0.5 | 30x1x0.5 | 0.55 | 1.2 | 15.7 | 0.9 | 1.5 | 20.5 | 848 |
| RE-2Y(St)HSWAH 37C0.5 | 37x1x0.5 | 0.55 | 1.2 | 16.9 | 0.9 | 1.6 | 21.9 | 963 |
| RE-2Y(St)HSWAH 40C0.5 | 40x1x0.5 | 0.55 | 1.2 | 17.6 | 1.25 | 1.6 | 23.3 | 1014 |
| 0.75mm2，多芯 | ||||||||
| RE-2Y(St)HSWAH 2C0.75 | 2x1x0.75 | 0.55 | 0.9 | 6.5 | 0.9 | 1.3 | 10.9 | 345 |
| RE-2Y(St)HSWAH 3C0.75 | 3x1x0.75 | 0.55 | 0.9 | 6.9 | 0.9 | 1.3 | 11.3 | 420 |
| RE-2Y(St)HSWAH 4C0.75 | 4x1x0.75 | 0.55 | 0.9 | 7.4 | 0.9 | 1.3 | 11.8 | 507 |
| RE-2Y(St)HSWAH 5C0.75 | 5x1x0.75 | 0.55 | 0.9 | 8.1 | 0.9 | 1.4 | 12.7 | 609 |
| RE-2Y(St)HSWAH 8C0.75 | 8x1x0.75 | 0.55 | 1 | 9.7 | 0.9 | 1.4 | 14.3 | 846 |
| RE-2Y(St)HSWAH 10C0.75 | 10x1x0.75 | 0.55 | 1 | 11.1 | 0.9 | 1.4 | 15.7 | 1035 |
| RE-2Y(St)HSWAH 12C0.75 | 12x1x0.75 | 0.55 | 1 | 11.5 | 0.9 | 1.4 | 16.1 | 1183 |
| RE-2Y(St)HSWAH 14C0.75 | 14x1x0.75 | 0.55 | 1.1 | 12.2 | 0.9 | 1.5 | 17 | 1334 |
| RE-2Y(St)HSWAH 16C0.75 | 16x1x0.75 | 0.55 | 1.1 | 12.9 | 0.9 | 1.5 | 17.7 | 1495 |
| RE-2Y(St)HSWAH 20C0.75 | 20x1x0.75 | 0.55 | 1.1 | 14.3 | 0.9 | 1.5 | 19.1 | 1823 |
| RE-2Y(St)HSWAH 24C0.75 | 24x1x0.75 | 0.55 | 1.2 | 16 | 0.9 | 1.5 | 20.8 | 2258 |
| RE-2Y(St)HSWAH 27C0.75 | 27x1x0.75 | 0.55 | 1.2 | 16.3 | 0.9 | 1.6 | 21.3 | 2482 |
| RE-2Y(St)HSWAH 30C0.75 | 30x1x0.75 | 0.55 | 1.2 | 16.9 | 0.9 | 1.6 | 21.9 | 2713 |
| RE-2Y(St)HSWAH 37C0.75 | 37x1x0.75 | 0.55 | 1.2 | 18.2 | 1.25 | 1.6 | 23.9 | 3231 |
| RE-2Y(St)HSWAH 40C0.75 | 40x1x0.75 | 0.55 | 1.3 | 19.1 | 1.25 | 1.6 | 24.8 | 3483 |
| 1.0mm2，多芯 | ||||||||
| RE-2Y(St)HSWAH 2C1.0 | 2x1x1.0 | 0.55 | 0.9 | 6.9 | 0.9 | 1.3 | 11.3 | 247 |
| RE-2Y(St)HSWAH 3C1.0 | 3x1x1.0 | 0.55 | 0.9 | 7.3 | 0.9 | 1.3 | 11.7 | 270 |
| RE-2Y(St)HSWAH 4C1.0 | 4x1x1.0 | 0.55 | 0.9 | 7.9 | 0.9 | 1.4 | 12.5 | 299 |
| RE-2Y(St)HSWAH 5C1.0 | 5x1x1.0 | 0.55 | 0.9 | 8.6 | 0.9 | 1.4 | 13.2 | 342 |
| RE-2Y(St)HSWAH 8C1.0 | 8x1x1.0 | 0.55 | 1 | 10.3 | 0.9 | 1.4 | 14.9 | 417 |
| RE-2Y(St)HSWAH 10C1.0 | 10x1x1.0 | 0.55 | 1 | 11.9 | 0.9 | 1.4 | 16.5 | 514 |
| RE-2Y(St)HSWAH 12C1.0 | 12x1x1.0 | 0.55 | 1 | 12.2 | 0.9 | 1.5 | 17 | 548 |
| RE-2Y(St)HSWAH 14C1.0 | 14x1x1.0 | 0.55 | 1.1 | 13 | 0.9 | 1.5 | 17.8 | 590 |
| RE-2Y(St)HSWAH 16C1.0 | 16x1x1.0 | 0.55 | 1.1 | 13.7 | 0.9 | 1.5 | 18.5 | 649 |
| RE-2Y(St)HSWAH 20C1.0 | 20x1x1.0 | 0.55 | 1.1 | 15.2 | 0.9 | 1.5 | 20 | 864 |
| RE-2Y(St)HSWAH 24C1.0 | 24x1x1.0 | 0.55 | 1.2 | 17 | 0.9 | 1.6 | 22 | 1005 |
| RE-2Y(St)HSWAH 27C1.0 | 27x1x1.0 | 0.55 | 1.2 | 17.4 | 1.25 | 1.6 | 23.1 | 1058 |
| RE-2Y(St)HSWAH 30C1.0 | 30x1x1.0 | 0.55 | 1.2 | 18 | 1.25 | 1.6 | 23.7 | 1113 |
| RE-2Y(St)HSWAH 37C1.0 | 37x1x1.0 | 0.55 | 1.2 | 19.6 | 1.25 | 1.6 | 25.3 | 1271 |
| RE-2Y(St)HSWAH 40C1.0 | 40x1x1.0 | 0.55 | 1.3 | 20.4 | 1.25 | 1.7 | 26.3 | 1351 |
| 1.3mm2，多芯 | ||||||||
| RE-2Y(St)HSWAH 2C1.3 | 2x1x1.3 | 0.6 | 0.9 | 7.4 | 0.9 | 1.3 | 11.8 | 275 |
| RE-2Y(St)HSWAH 3C1.3 | 3x1x1.3 | 0.6 | 0.9 | 7.9 | 0.9 | 1.3 | 12.3 | 301 |
| RE-2Y(St)HSWAH 4C1.3 | 4x1x1.3 | 0.6 | 0.9 | 8.5 | 0.9 | 1.4 | 13.1 | 340 |
| RE-2Y(St)HSWAH 5C1.3 | 5x1x1.3 | 0.6 | 1 | 9.5 | 0.9 | 1.4 | 14.1 | 383 |
| RE-2Y(St)HSWAH 8C1.3 | 8x1x1.3 | 0.6 | 1 | 11.2 | 0.9 | 1.4 | 15.8 | 436 |
| RE-2Y(St)HSWAH 10C1.3 | 10x1x1.3 | 0.6 | 1.1 | 13.2 | 0.9 | 1.5 | 18 | 578 |
| RE-2Y(St)HSWAH 12C1.3 | 12x1x1.3 | 0.6 | 1.1 | 13.6 | 0.9 | 1.5 | 18.4 | 633 |
| RE-2Y(St)HSWAH 14C1.3 | 14x1x1.3 | 0.6 | 1.1 | 14.3 | 0.9 | 1.5 | 19.1 | 698 |
| RE-2Y(St)HSWAH 16C1.3 | 16x1x1.3 | 0.6 | 1.1 | 15 | 0.9 | 1.5 | 19.8 | 870 |
| RE-2Y(St)HSWAH 20C1.3 | 20x1x1.3 | 0.6 | 1.2 | 16.9 | 0.9 | 1.6 | 21.9 | 1014 |
| RE-2Y(St)HSWAH 24C1.3 | 24x1x1.3 | 0.6 | 1.2 | 18.7 | 1.25 | 1.6 | 24.4 | 1163 |
| RE-2Y(St)HSWAH 27C1.3 | 27x1x1.3 | 0.6 | 1.3 | 19.3 | 1.25 | 1.6 | 25 | 1227 |
| RE-2Y(St)HSWAH 30C1.3 | 30x1x1.3 | 0.6 | 1.3 | 20 | 1.25 | 1.6 | 25.7 | 1305 |
| RE-2Y(St)HSWAH 37C1.3 | 37x1x1.3 | 0.6 | 1.3 | 21.6 | 1.25 | 1.7 | 27.5 | 1504 |
| RE-2Y(St)HSWAH 40C1.3 | 40x1x1.3 | 0.6 | 1.4 | 22.7 | 1.25 | 1.7 | 28.6 | 1584 |
| 1.5mm2，多芯 | ||||||||
| RE-2Y(St)HSWAH 2C1.5 | 2x1x1.5 | 0.6 | 0.9 | 7.7 | 0.9 | 1.3 | 12.1 | 279 |
| RE-2Y(St)HSWAH 3C1.5 | 3x1x1.5 | 0.6 | 0.9 | 8.1 | 0.9 | 1.4 | 12.7 | 312 |
| RE-2Y(St)HSWAH 4C1.5 | 4x1x1.5 | 0.6 | 0.9 | 8.8 | 0.9 | 1.4 | 13.4 | 358 |
| RE-2Y(St)HSWAH 5C1.5 | 5x1x1.5 | 0.6 | 1 | 9.8 | 0.9 | 1.4 | 14.4 | 403 |
| RE-2Y(St)HSWAH 8C1.5 | 8x1x1.5 | 0.6 | 1 | 11.6 | 0.9 | 1.4 | 16.2 | 526 |
| RE-2Y(St)HSWAH 10C1.5 | 10x1x1.5 | 0.6 | 1.1 | 13.7 | 0.9 | 1.5 | 18.5 | 630 |
| RE-2Y(St)HSWAH 12C1.5 | 12x1x1.5 | 0.6 | 1.1 | 14.1 | 0.9 | 1.5 | 18.9 | 669 |
| RE-2Y(St)HSWAH 14C1.5 | 14x1x1.5 | 0.6 | 1.1 | 14.8 | 0.9 | 1.5 | 19.6 | 742 |
| RE-2Y(St)HSWAH 16C1.5 | 16x1x1.5 | 0.6 | 1.1 | 15.6 | 0.9 | 1.5 | 20.4 | 925 |
| RE-2Y(St)HSWAH 20C1.5 | 20x1x1.5 | 0.6 | 1.2 | 17.6 | 1.25 | 1.6 | 23.3 | 1090 |
| RE-2Y(St)HSWAH 24C1.5 | 24x1x1.5 | 0.6 | 1.3 | 19.6 | 1.25 | 1.6 | 25.3 | 1218 |
| RE-2Y(St)HSWAH 27C1.5 | 27x1x1.5 | 0.6 | 1.3 | 20.1 | 1.25 | 1.6 | 25.8 | 1320 |
| RE-2Y(St)HSWAH 30C1.5 | 30x1x1.5 | 0.6 | 1.3 | 20.8 | 1.25 | 1.7 | 26.7 | 1385 |
| RE-2Y(St)HSWAH 37C1.5 | 37x1x1.5 | 0.6 | 1.4 | 22.6 | 1.25 | 1.7 | 28.5 | 1586 |
| RE-2Y(St)HSWAH 40C1.5 | 40x1x1.5 | 0.6 | 1.4 | 23.6 | 1.25 | 1.7 | 29.5 | 1723 |
| 2.5mm2，多芯 | ||||||||
| RE-2Y(St)HSWAH 2C2.5 | 2x1x2.5 | 0.7 | 0.9 | 8.9 | 0.9 | 1.4 | 13.5 | 370 |
| RE-2Y(St)HSWAH 3C2.5 | 3x1x2.5 | 0.7 | 1 | 9.7 | 0.9 | 1.4 | 14.3 | 387 |
| RE-2Y(St)HSWAH 4C2.5 | 4x1x2.5 | 0.7 | 1 | 10.5 | 0.9 | 1.4 | 15.1 | 442 |
| RE-2Y(St)HSWAH 5C2.5 | 5x1x2.5 | 0.7 | 1 | 11.9 | 0.9 | 1.4 | 16.5 | 568 |
| RE-2Y(St)HSWAH 8C2.5 | 8x1x2.5 | 0.7 | 1.1 | 13.9 | 0.9 | 1.5 | 18.7 | 729 |
| RE-2Y(St)HSWAH 10C2.5 | 10x1x2.5 | 0.7 | 1.2 | 16.3 | 0.9 | 1.6 | 21.3 | 957 |
| RE-2Y(St)HSWAH 12C2.5 | 12x1x2.5 | 0.7 | 1.2 | 16.9 | 0.9 | 1.6 | 21.9 | 1049 |
| RE-2Y(St)HSWAH 14C2.5 | 14x1x2.5 | 0.7 | 1.2 | 17.7 | 1.25 | 1.6 | 23.4 | 1198 |
| RE-2Y(St)HSWAH 16C2.5 | 16x1x2.5 | 0.7 | 1.3 | 18.9 | 1.25 | 1.6 | 24.6 | 1302 |
| RE-2Y(St)HSWAH 20C2.5 | 20x1x2.5 | 0.7 | 1.3 | 21.1 | 1.25 | 1.7 | 27 | 1485 |
| RE-2Y(St)HSWAH 24C2.5 | 24x1x2.5 | 0.7 | 1.4 | 23.6 | 1.25 | 1.7 | 29.5 | 1718 |
| RE-2Y(St)HSWAH 27C2.5 | 27x1x2.5 | 0.7 | 1.4 | 24.1 | 1.25 | 1.8 | 30.2 | 1895 |
| RE-2Y(St)HSWAH 30C2.5 | 30x1x2.5 | 0.7 | 1.5 | 25.2 | 1.25 | 1.8 | 31.3 | 2166 |
| RE-2Y(St)HSWAH 37C2.5 | 37x1x2.5 | 0.7 | 1.5 | 27.2 | 1.25 | 1.8 | 33.3 | 2505 |
| RE-2Y(St)HSWAH 40C2.5 | 40x1x2.5 | 0.7 | 1.6 | 28.5 | 1.25 | 1.9 | 34.8 | 2723 |
